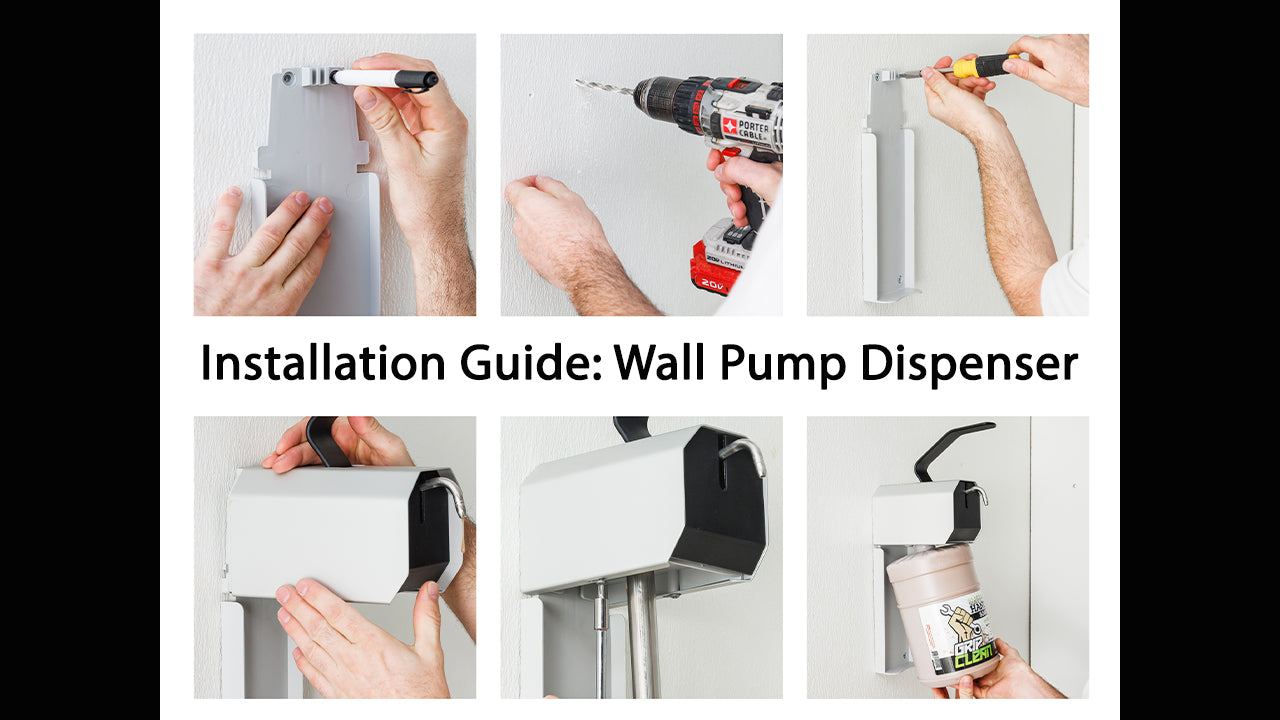

Wall Pump Soap Dispenser Installation and Usage Guide

Easy to read mounting instructions: Wall Pump Soap Dispenser

Step 1: Loosen screws and slide aluminum cover forward until it stops against the screws. Hold the cover and pull the wall bracket downward to remove it.

Step 2: Mount the wall bracket using provided screws/plugs or appropriate fasteners. Leave 11" of space below the bracket for easy bottle removal.

Step 3: Mount the dispenser onto the wall bracket with the cover in the forward position. Push the dispenser downward to engage the cover in the slots.

Step 4: Slide the cover back against the wall surface and tighten the underside screws.

Step 5: Slide the bottle neck up into the dispenser cylinder to install it.

Step 6: Place the bottle base onto the wall bracket shelf and press the lever firmly 4-5 times to prime the unit
